Catalog: items

and replacement parts

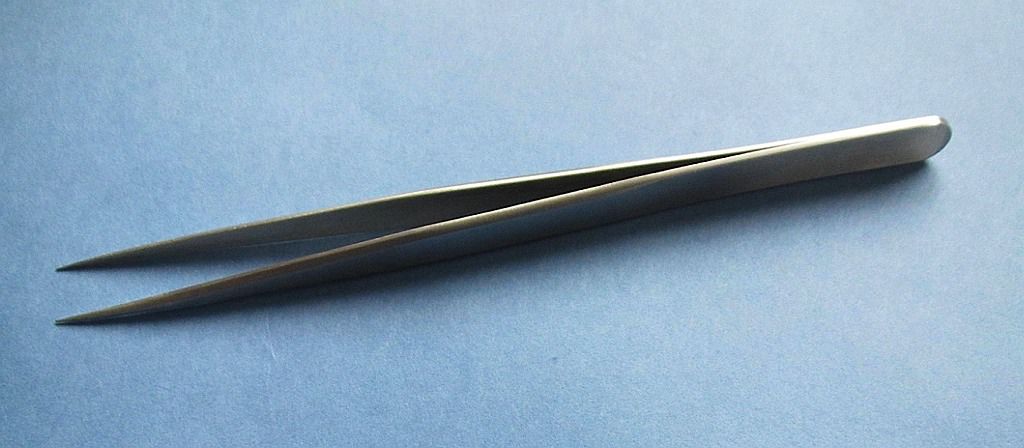

Pressure grip forceps
(may be purchased separately)

Art.-No 1.05
Pressure grip forceps, overall length 120 mm, weight 13 g

Ventral pressure grip forceps

The ventral forceps is used in a similar manner as the sting forceps 1.05. It is designed to grip the ventral terminal segment of the abdomen securely from above.

Art.-No 1.06
The modified form of the forceps of the Ventral pressure grip forceps

SCHLEY-Syringe separate
(may be purchased separately)

Art.-No 1.10
Insemination syringe

Syringe Seal

Art.-No 1.12
Rubber plug

Syringe cylinder

Art.-No 1.13
Syringe cylinder

Sleeve

Art.-No 1.14
Sleeve (for glasstips 1,5 mm)

Silicone-sealing tubing

Art.-No 1.15
For the seal. Outside 3 mm, inside Ø 1mm

Silicon-grease

Art.-No 1.16
Silicon-grease 4g

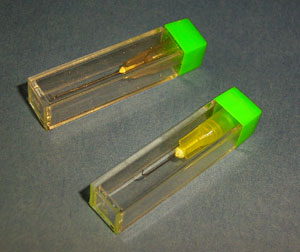

Hooks

SCHLEY-Dorsalhook with Luertaper,
without handle

Art.-No 1.21
Dorsalhook

Ventral-hook

Art.-No 1.23
Ventralhook (in the picture above) with Luertaper

Handle with Luertaper

Art.-No 1.24
Handle with taper (without hook)

Probe with handle

Art.-No 1.25
Probe

Queenholder tube set

Art.-No 1.51
Backup-tube (left side)
Art.-No 1.52
Holding-tube (right side)

CO2-cartridges

Einwegkapseln

Art.-No 4.01
Cartridges 16 g (10 pieces)

CO2-adapter unit with Serto-fineadjustment and magnetholder complete

Art.-No 4.02
CO2-adapter unit

Fine adjustment for CO2

Art.-No 4.03
Fineadjustment for CO2, Ø 4 mm inside

Bottle CO2

Art.-No 4.11
High pressure bottle with 1,5 kg CO2, Ø 100 mm,
height 43 cm, weight 5,6 kg full

Glass-tips

Art.-No 5.00 (5 x)
Glass-tips  Ø 1,5 mm, length 80 mm, outside Ø 1.5 mm. Point Ø approx. Ø 0.3 mm, opening fire polished 0.15-0.17 mm, wall thickness 0.07 mm, drawn-out part 6 mm.

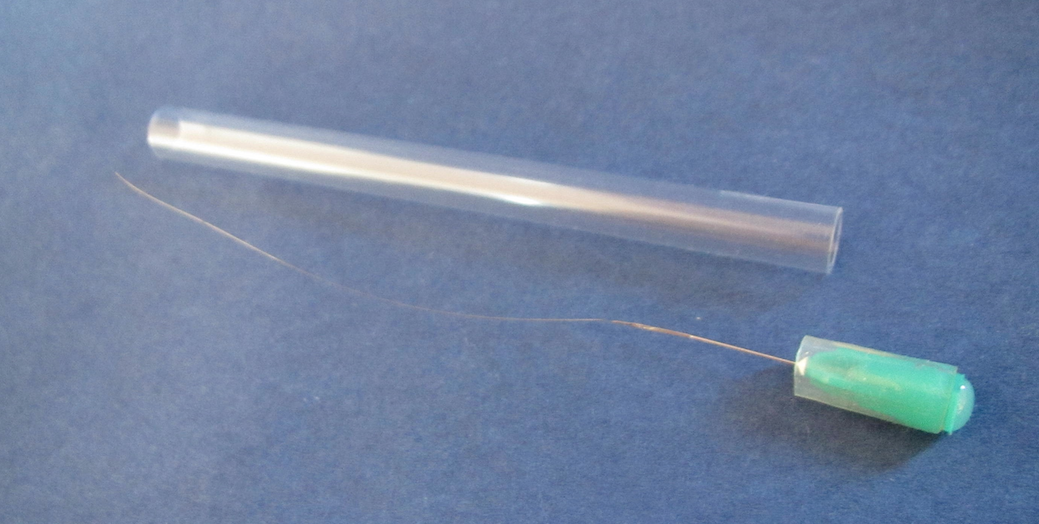

Cleaning-wire

Art.-No 5.10
Cleaning-wire, Ø 0,15 mm

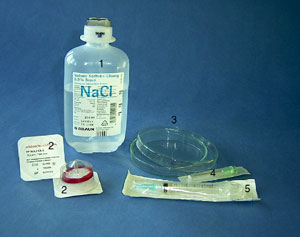

Important accessories

Salt-solution (1), Bacteria-filter 0,2 µm (2), Petri-plate (3),
One time use syringe with needle (4, 5)

Please send orders to this E-mail.
